O-ring selection - consulting

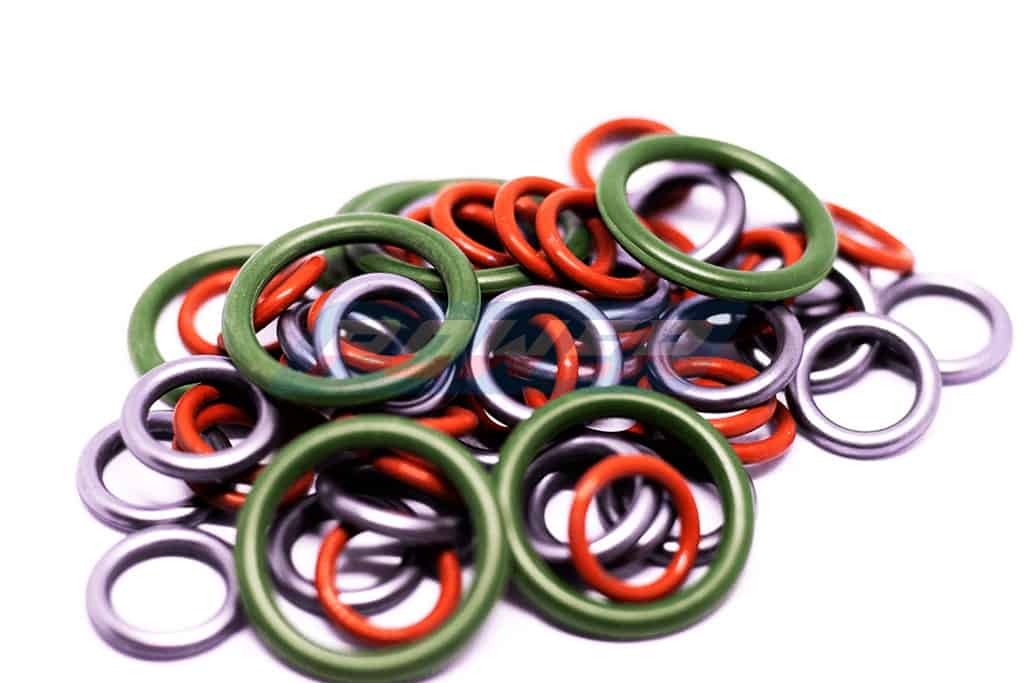

O-rings, that is sealing rings, are the simplest and at the same time extremely effective solution. They gained their popularity thanks to their simplicity, versatility and easy application. Currently you can get O-rings in various sizes and from many types of rubber compounds. To ensure proper operation, you should first know how to correctly select an O-ring for your needs.
How to correctly measure O-rings?
O-rings are bidirectionally acting sealing elements that are used in static and dynamic systems. They are commonly used not only as seals, but also as drive belts. Made from standard, most popular materials they have a temperature resistance from -40 to +210 degrees Celsius. In metric sizes the O-ring diameter is graduated and changes every 1 mm, and the cross-section every 0.5 mm. To size O-rings you need the inner diameter (denoted by the letter D) and the cross-section width (denoted by the letter W). When checking the size of old, worn O-rings you should account for their deformation. For this reason it is a good idea to measure them on the sealed part. The cross-section can be checked from two sides and then averaged, which will be a more reliable result. This way of measuring O-rings will give greater certainty that the size will be ideal. More information about correctly determining dimensions can be found in the guide how to measure O-rings.
When selecting an O-ring you should take into account not only its dimensions and the material of manufacture, but also the type of working medium with which the seal will come into contact, and the required chemical compatibility of the material. Depending on the working conditions the appropriate Shore A hardness may also be important, which affects the behavior of the O-ring under load and during the operation of the seal.
It is also worth seeking the advice of a specialist regarding the selection of O-rings.
Which O-ring size to choose? We cordially invite you to contact our experienced specialists, who will gladly help in selecting O-rings. The appropriate size and material are the basis for tight sealing and the proper operation of the device. We are convinced that you will find the appropriate sealing ring among our wide range of rubber products.
We guarantee professional technical advice. We invite you to contact us by phone +48 22 292 40 24 or +48 505 16 03 03, or by e-mail (Power|PowerRubber.com| style="background-color: rgb(255, 255, 255); color: rgb(0, 91, 171); border-bottom: 1px dotted rgb(0, 91, 171); text-align: justify;"|Power|PowerRubber.com) or via our contact form.
