Shore A Hardness Scale
Hardness is a measure of a material's resistance to indentation. It is one of the fundamental parameters defining the functional properties of rubber. The Shore hardness scale is commonly used for determining the hardness of materials. Understanding this scale allows for precise evaluation of rubber product hardness and selection of the appropriate material for a specific application.
What is the Shore A hardness scale?
The Shore A hardness scale is a key criterion used in determining material hardness, especially rubber compounds. The hardness measurement method was developed by Albert Ferdinand Shore. The Shore hardness scale has long been known and widely used in many industries. The Shore A hardness range is from 0 to 100. The higher the value, the harder the material. The method is used to measure soft and medium materials, such as vulcanized and natural rubber, thermoplastic TPE, thermosetting plastics, and felt.
Determining material hardness allows for assessing its resistance to deformation using a device known as a Shore durometer. Rubber hardness testing enables comparison of various elastomeric compounds independent of their chemical composition or vulcanization technology.
Shore hardness measurement is strictly standardized. The result forms the basis of evaluating whether the material's hardness is adequately selected for the expected operating conditions. Properly selected material hardness is crucial - too soft materials might undergo permanent deformation, while too hard elastomers lose their flexibility. Appropriate hardness of rubber products ensures optimal performance parameters.
Differences between Shore A, Shore C, and Shore D scales
The Shore hardness scale is divided into different hardness scales, each designed to evaluate materials of a specific hardness:
-
Shore A hardness scale - measures the hardness of soft elastomers and plastics with low stiffness
-
Shore C hardness scale - measures the hardness of medium-hard materials that are too stiff for scale A but too soft for scale D
-
Shore D hardness scale - used for measuring the hardness of harder materials, including more rigid plastics and rubbers
Different Shore hardness scales are designed for various types of materials and utilize different indenters and forces. Values obtained from different scales cannot be compared directly as each operates in a different range and measures different resistance to deformation.
Benefits of using the Shore A scale
Using Shore hardness brings numerous benefits in the design and production processes of rubber products. Standardized measurement allows for determining material hardness - whether it is soft or hard enough for a specific application. The Shore scale also enables comparison of different elastomer properties using the same scale, significantly simplifying the evaluation of rubber products' hardness throughout the production cycle. The measurement value, or Shore scale value, ensures consistent product quality. It allows predicting component behavior under load, minimizing the risk of deformation, cracking, or loss of seal. The Shore A scale cannot be compared to other scales.
Shore A hardness unit
The value of Shore A hardness is not expressed in g/cm³ or kg/m³ as density is, but in hardness units that define the degree of the measurement needle's indentation. It is a dimensionless unit standardized according to ISO 7619-1 and ASTM D2240 standards.

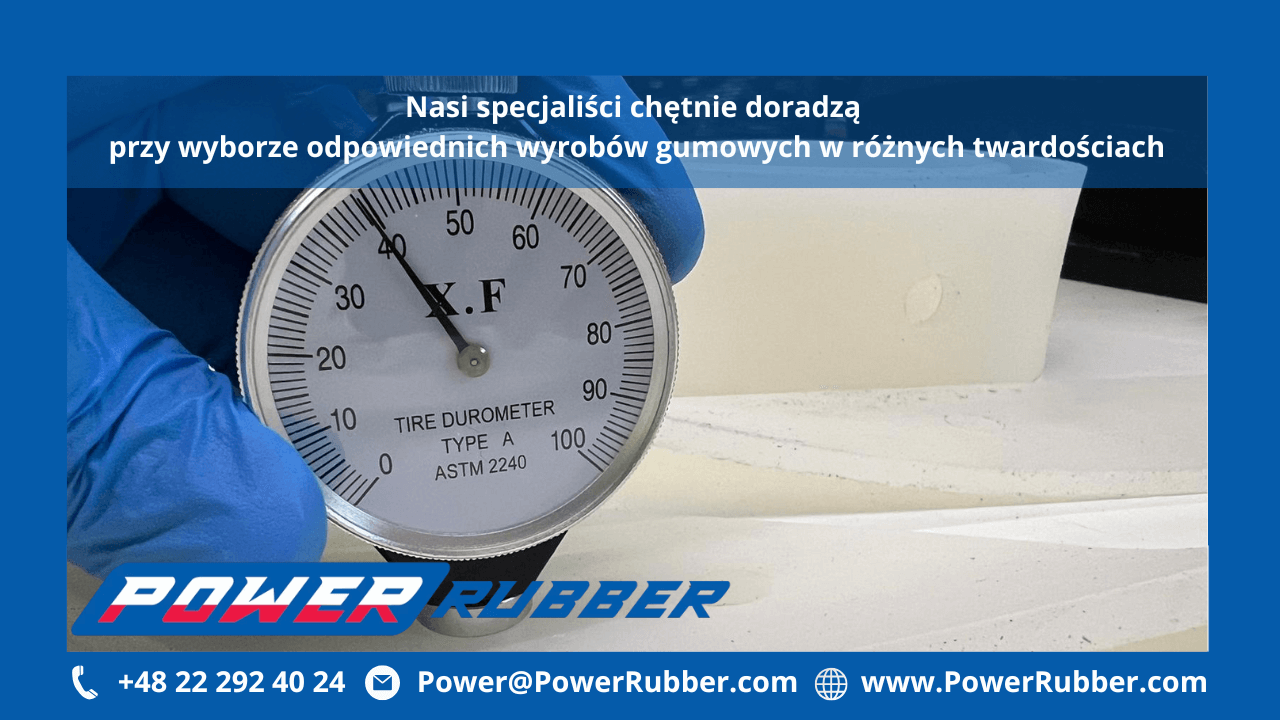

Durometer - measuring material hardness
A Shore durometer is a specialized device designed for measuring the hardness of soft and medium materials, primarily rubbers, elastomers, and polymers. Measurements are conducted following ASTM D2240 standard for vulcanized rubber and ASTM D1414 standard for complete O-ring rings.
How is hardness measured using Shore A?
A durometer consists of a hardened steel rod with a truncated cone at the end, connected to a spring mechanism that activates an indicator within the range of 1 to 100. During tests, a test sample of appropriate thickness is placed under the measuring tip. The rod is then pressed into the material until the flat metal plate at the bottom aligns with the test elastomer sample.
Higher hardness indicates greater resistance to indentation. A lower measurement value indicates less resistance to indentation and softer rubber materials. A Shore durometer allows for precisely determining elastomer hardness for specific applications, such as in the machinery industry, transportation, the food sector, or other applications requiring high thermal resistance, chemical compatibility, and mechanical durability.
Interpreting results - What does the Shore indicator mean?
Shore A hardness testing allows predicting elastomer behavior under real load conditions. The obtained value, read as the Shore indicator, is a measure of the material's resistance to indentation, allowing direct evaluation of Shore hardness from the measuring device (durometer). It is a basic tool in testing rubber materials, enabling the comparison of elastomer properties across a broad Shore scale range.
Shore A scale range - from 0 to 100
The Shore hardness scale is widely used for testing the hardness of soft rubbers, rigid plastics, and super-soft gels. Shore hardness is tested using an instrument called a durometer, which has a foot pressed into the tested material. The foot is spring-loaded and drives the indentation. Shore A durometer hardness measurement covers the full range from 0 to 100. The following material classification by hardness has been adopted:
-
hardness from 20 to 40 ShA - soft elastomers
-
hardness from 40 to 60 ShA - medium hardness elastomers
-
hardness from 60 - 80 ShA - hard rubber
The Shore A method allows for precisely selecting the type of rubber for specific application requirements.
Rubber hardness - Shore A hardness scale
One of the parameters affecting the hardness of rubber materials is their density. The dependency principle can be presented as follows: The greater the rubber hardness, the greater the density of rubber products.
Standard hardness values for solid rubber include the following values:
-
90 ShA
-
88 ShA
-
82 ShA
-
80 ShA
-
75 ShA
-
70 ShA
-
65 ShA
-
60 SHA
-
50 ShA
-
40 ShA
Standard values for sponge rubber include the following values:
-
30 ShA
-
25 ShA
-
20 ShA
-
18 ShA
-
15 ShA
-
10 ShA
-
5 ShA
Rubber products of various hardness available at Power Rubber
At Power Rubber store, we offer products with varied rubber hardness, making them excellent sealing, cushioning, and protective elements used in many industries. Our rubber products are made from elastomer compounds, with rubber hardness on the Shore A scale appropriately selected according to specific application requirements.
The Shore scale allows for unequivocal classification of a material's resistance to deformation. A higher hardness value indicates a harder and less elastic material. Lower Shore hardness values indicate more elastic and softer materials. Hardness measurement using a durometer allows for adjusting mechanical properties to specific loads and working conditions. Shore durometer hardness measurement is conducted according to applicable hardness measurement standards, ensuring repeatability of results and full compliance with industry technical requirements.
In the wide assortment of Power Rubber, you will find rubber products from various rubber compounds (NBR, EPDM, SBR, PTFE, etc.) with hardness tailored to device operating parameters - from soft elastomers absorbing vibrations to hard compounds designed for intensive operating conditions.
The POWER Rubber store offers the following assortment:
At Power Rubber, we provide full technical support in selecting materials and technical parameters. If you need a consultation on what rubber hardness would be suitable for a specific application, please contact us at +48 22 292 40 24 or +48 505 16 03 03, or by email (Power|PowerRubber.com| |Power|PowerRubber.com) or through our contact form.
We accurately measure Shore hardness according to applicable standards, allowing for the selection of rubber products with the highest durability and reliability.
