Double-sided CE concrete road barrier

Double-sided CE concrete road barrier

The installation of a double-sided concrete barrier is crucial for protecting road users, especially on high-traffic roads. Its design protects vehicles from both sides, preventing head-on and side collisions, as well as limiting the consequences of uncontrolled departures from the lane. Proper installation ensures stability and effectiveness in absorbing impact energy. Used on highways, junctions, and median strips, it significantly enhances road safety.

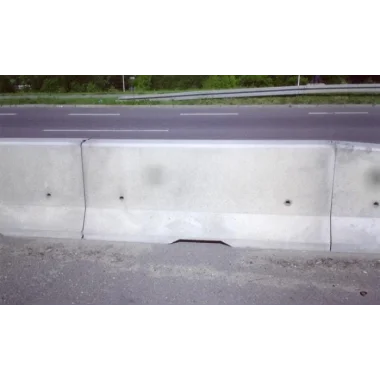

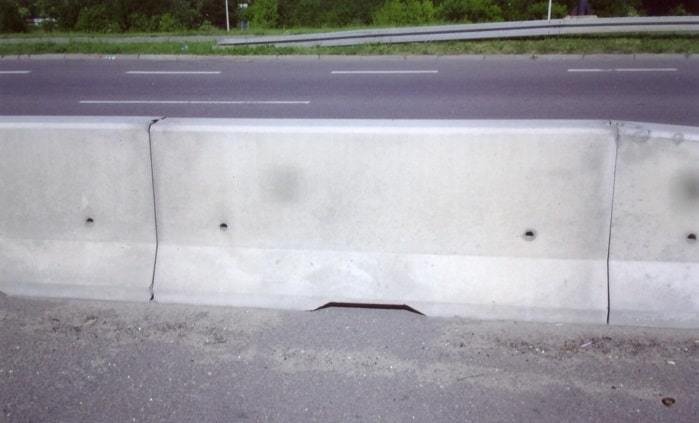

Concrete Barrier - Double-Sided

A double-sided road barrier works in both directions, securing lanes on both sides. It is mainly used on highways, in the middle dividing lanes, minimizing the effects of head-on collisions.

Length: 2000 mm

Width: 810 mm

Height: 550 mm

It has CE marking.

Purpose:

The main purpose of safety barriers is to ensure road traffic safety. They are used in locations where a vehicle crossing the road edge or exceeding the dividing lane poses a serious threat to road users. Safety barriers are used on viaducts and embankments, where there are permanent objects and obstacles close to the road (poles, buildings, etc.), with which a collision could be particularly dangerous.

A properly designed, manufactured, and installed road safety barrier should:

• prevent a vehicle from crossing the road edge or the dividing lane onto the cross-traffic lane,
• redirect the vehicle to a traffic lane, parallel or close to parallel to the barrier, with minimal risk to other vehicles. There should be no rebound or elastic rejection of the vehicle,
• cause minimal damage to the vehicle during a collision, limiting it preferably to the bodywork elements, without seriously hindering the ability to control the direction and path of movement,
• clearly and distinctly define the external edge of the road or lane,

Road barriers, energy-absorbing barriers, bridge barriers, highway barriers.
