Cutting rubber sheets with a CNC plotter
Cutting rubber sheets with a CNC plotter is a service that combines advanced technology with exceptional precision, offering solutions ideal for various applications. Our machine park, located near Warsaw, enables us to fulfill orders for delivery, allowing us to serve customers from all over the country. The rubber sheets we cut are characterized by flexibility, wear resistance, and excellent insulating properties. With cutting precision ranging from ±0.1 mm to ±1 mm, we are able to deliver high-quality products, perfect for applications such as seals, mats, cover pads, and terraces. Our CNC technology allows for minimizing material waste and time savings, resulting in competitive prices and quick turnaround times. We invite you to take advantage of our services and discover the benefits of CNC cutting."
Domaniewska Street 1, 05-800 Pruszków
Opening hours:
Monday - Friday: 8:00 AM - 4:00 PM, Saturday: 8:00 AM - 12:00 PM
Write to us
Cutting rubber sheets is a process that requires precision and the right equipment. Our CNC plotter machine allows cutting materials of various hardness and thickness, providing precision from ±0.1 mm to ±1 mm. Ordering from us is quick and efficient - after placing an order, we contact you to confirm details and material adjustments. We then proceed with order fulfillment, paying attention to every detail. Upon completion, we check the quality of the work before sending the order to the customer. Our after-sales service provides full support and ensures satisfaction with our services. With us, you can be sure to receive a high-quality product, crafted with attention to every detail.
| Category | Value |
|---|---|
| Material Thickness (min - max) | 0.3mm - 50mm |
| Material Hardness | from 40 ShA to 90 ShA |
| Cutting Precision | ±0.1 mm to ±1 mm |
| Examples of Use | Gaskets, mats, pads for covers and decks |
| Material Notes | Flexibility, wear resistance, good insulation |
What rubber sheets do you cut with a CNC plotter?
We offer precise cutting of rubber sheets using CNC plotter technology, covering a wide range of materials, including:
-
Solid rubber (rubber sheets and mats)
-
Micro rubber (cellular/porous rubber)
-
Technical silicone
-
Gasket sheets
By selecting the appropriate cutting parameters such as hardness, thickness, and material characteristics, we achieve excellent dimensional repeatability and high-quality, smooth edges of components. Thanks to the use of precise tools and CNC technology, we ensure reliable cutting quality, even with complex geometries.
Methods of cutting rubber sheets – what technologies do we use?
In CNC processing of rubber sheets, we use modern cutting technologies, selected according to thickness, hardness, and type of elastomer compound:
-
Oscillating knife – ideal for precise cutting of rubber sheets, micro rubber, and materials with a self-adhesive layer
-
Drag knife – fast and repeatable cutting of rubber sheets and panels of standard thickness
-
Milling – used for thick rubber sheets and materials with increased hardness and density
These technologies allow cutting rubber sheets without edge scorching, maintaining high dimensional accuracy and full repeatability of components.
Cutting rubber sheets using CNC plotters offers precise and efficient solutions for many applications. Rubber, thanks to its flexibility, wear resistance, and excellent insulating properties, is an ideal material for seals, mats, and pads for covers and terraces. Our advanced CNC machines enable accurate cutting of rubber, ensuring clean edges and minimal material waste. This allows us to deliver high-quality products that meet the specific requirements of our customers. The precision of CNC cutting maintains the key properties of rubber, increasing its durability and functionality in various applications. We invite you to take advantage of our services to fully leverage the potential of rubber sheets in your projects and achieve the best results.
Rubber sheets are widely used in industry as technical, sealing, insulating, and protective materials. Thanks to their flexibility and resistance to abrasion, vibrations, chemical substances, and variable temperatures, they are used in many industrial and manufacturing applications.
Typical applications of rubber sheets include:
-
Technical gaskets – prevent unwanted leakage of liquids and gases and ensure tightness of joints
-

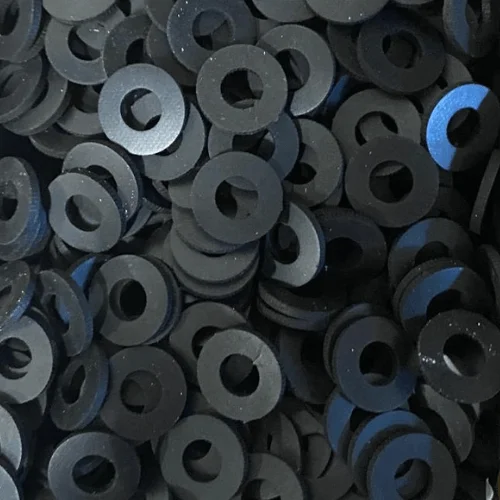

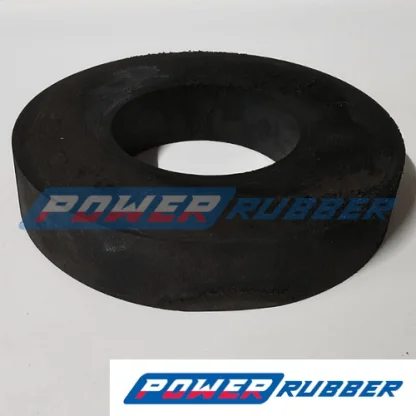

Rubber pads – distribute pressure, protect surfaces, and improve installation stability
-
Spacer elements – maintain proper distances between structural parts or devices
-
Rubber dampers – absorb vibrations and shocks and protect machine components from wear
-
Rubber insulators – reduce the transmission of vibrations and noise
What types of rubber sheets do you cut with a CNC plotter?
At Power Rubber, we cut various types of rubber sheets, including:
-
NBR (nitrile-butadiene rubber) – resistant to oils and fuels
-
EPDM (ethylene-propylene-diene rubber) – resistant to weather conditions and ageing
-
SBR (styrene-butadiene rubber) – for general technical applications
-
CR / Neoprene (chloroprene rubber) – with increased chemical and mechanical resistance
-
Viton® / FKM (fluoroelastomer) – for operation at high temperatures and in aggressive media
We also offer CNC cutting of:
-

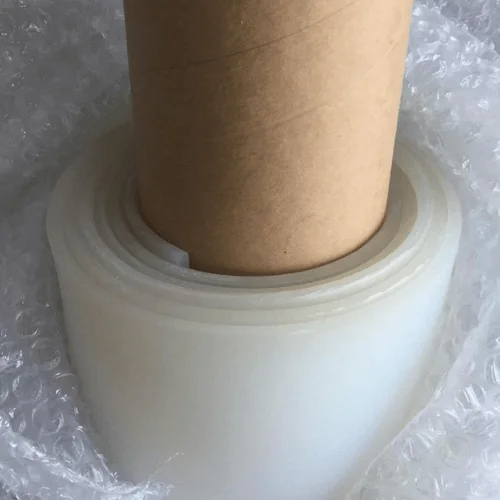

Silicone sheets, including technical and food-grade (FDA) silicones
-
Micro rubber sheets (porous and foamed)
-
Gasket and compressed fiber sheets
-
Sheets made of specialist compounds – resistant to high temperatures, chemicals, and harsh industrial conditions
We select the cutting technology according to the type of rubber sheet and its thickness. The cutting process is precise, without edge scorching, even for specialist materials that are more difficult to machine.
What is the maximum sheet size for CNC cutting?
Our standard CNC table has dimensions of 2700x1300 mm, which allows for precise and repeatable cutting of most components in a single cycle.
Thanks to advanced technology, we also process larger sheets and non-standard formats:
-
1200x5000 mm or 1200x10000 mm
-
1400x5000 mm or 1400x10000 mm
-
1500x5000 mm or 1500x10000 mm
This enables the cutting of large rubber components and technical sheets.

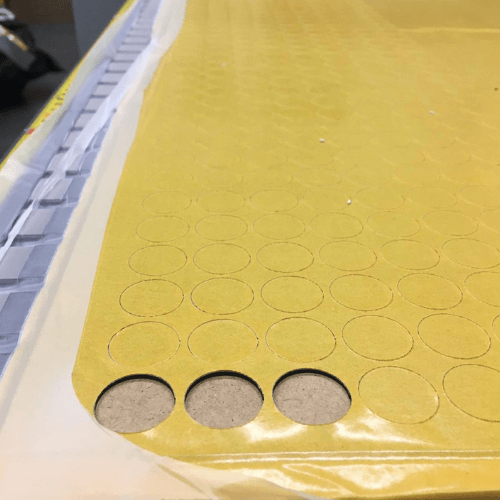

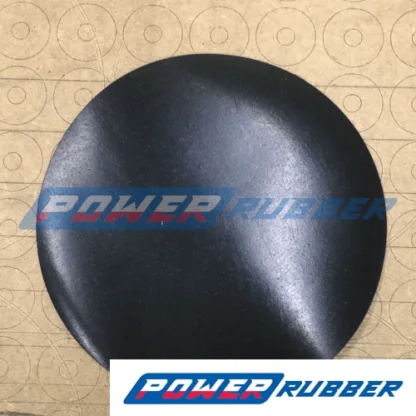

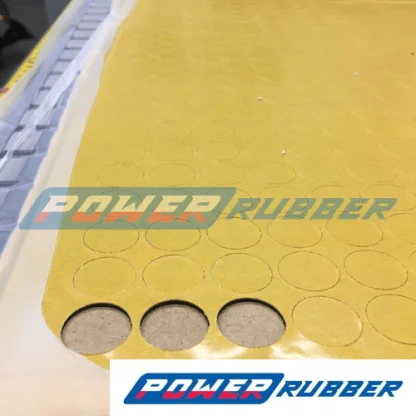

Do you cut rubber sheets with adhesive or a self-adhesive layer?
Yes, we perform precise cutting of rubber sheets with an adhesive or self-adhesive layer. To ensure dimensional accuracy and edge repeatability, the adhesive must be mechanically and thermally stable—it must not stretch, deform, or melt during processing.
What file is required for a quote for CNC cutting of rubber sheets?
To prepare a quote, it is best to submit a file in DXF or DWG format containing the contours and dimensions of the elements to be cut. By using vector files, we can prepare an accurate offer and optimize the CNC cutting process, ensuring precision and repeatability of the finished components. Graphic files or photos can only be used for an indicative quotation.
Our CNC rubber sheet cutting projects
