Industrial electrical insulating mat BS:EN 61111:2009

Industrial electrical insulating mat BS:EN 61111:2009

Industrial electrical insulating mat with BS:EN 61111:2009 standard, featuring a structure of fine grooves. Used for equipment operating at high voltage and in electrical switchgear to provide protection against electric shock. Mats enhance the safety of electricians and installers.

Industrial electrical insulating mat BS:EN 61111:2009 - available variants

The electrical insulating mat is available in the following variants:

• COBAswitch with a thickness of 3 mm meets class 0 requirements. Max. operating voltage 1,000 V
• COBAswitch with a thickness of 4 mm meets class 2 requirements. Max. operating voltage 26,500 V
• COBAswitch with a thickness of 5 mm meets class 4 requirements. Max. operating voltage 36,000 V


•

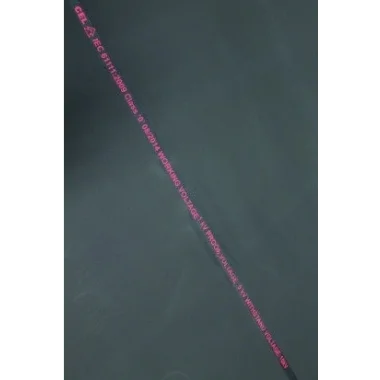

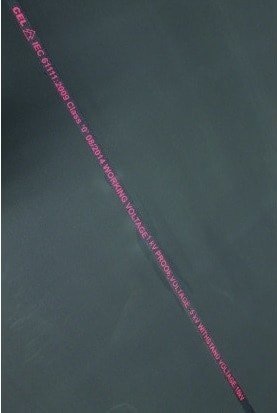

Colored tape on the bottom of the mat easily identifies the class of the mat. The mat has limited resistance to low temperatures, acids, oils, and solvents.

Industrial electrical insulating mat - technical specification

Material: Natural rubber

Construction: Uniform

Surface: Grooved

Working environment: Dry, electrical switchgear, near equipment

Installation method: Loose-laid

Operating temperature range: from -30°C to 80°C
Note: We recommend using mats in positive temperatures, as this provides additional benefits - longer lifespan.

Insulation from cold substrate: YES

Anti-slip properties: YES

Cleaning method: Very easy to maintain cleanliness with simple tasks like vacuuming, sweeping.

Thickness:

• 3 mm
• 4 mm
• 5 mm

Weight: 5.5kg/1m2 6.5kg/1m2 7.5kg/1m2

Available colors: black
