COBA Switch electrical insulation mat

COBA Switch electrical insulation mat

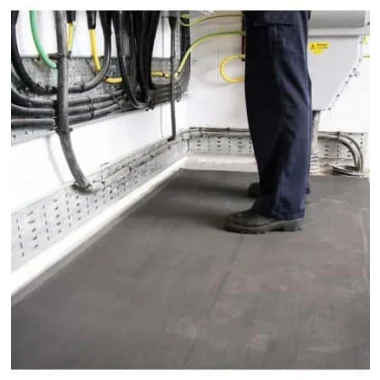

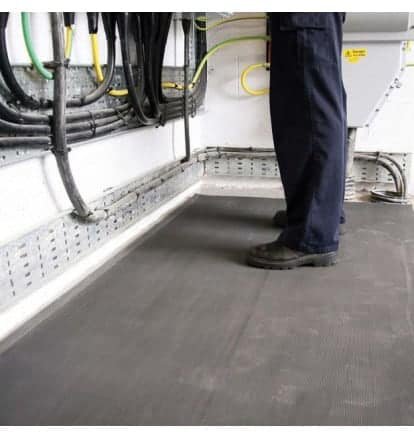

The COBA Switch electrical insulation mat is a rubber insulating mat. It has small grooves that facilitate the drainage of liquids. It is dedicated to work with high voltage equipment. This insulating mat can be found near electrical switchboards, providing protection against electric shock. It complies with the BS 921:1976 standard.

COBA Switch electrical insulation mat - available variants and thicknesses

The mat is available in 2 variants and 2 thicknesses:

• 6 mm thick mat / tested for a maximum voltage of 11,000 V at an operating voltage of 450 V.
• 9.5 mm thick mat / tested for a maximum voltage of 15,000 V at an operating voltage of 650 V.

It is worth noting that the 9.5 mm thick COBA Switch insulating mat meets the requirements of the BS 921:1976 standard.

COBA Switch electrical insulation mat - technical specification

Material: Natural rubber based polymer

Structure: Solid

Surface: Equipped with grooves to facilitate drainage of liquids

Working environment: Dry, electrical switchboards, near equipment

Installation method: Loose laid

Operating temperature range: from -20°C to 80°C
Note: We recommend using the mats in positive temperatures, as this provides additional benefits - longer lifespan.

Insulation from cold substrate: YES

Antislip properties: YES

Cleaning method: Very easy to maintain, simple tasks like vacuuming, sweeping are sufficient.

Height: 6 mm / 9.5 mm

Weight: 9.2kg/m2 / 14kg/m2

Available colors: Black

COBA Switch electrical insulation mat - available dimensions

• 900 mm x 10000 mm
• 1200 mm x 1000 mm
• 900 mm x 10000 mm
• 1200 mm x 1000 mm
