COBA Switch VDE insulating mat

available 3 variants
Configure the product using the filters to make a purchase.
Ask for product Catalog card
Product Mpn Thickness [mm] Width [mm] Length [mm] Price
gross

Chodnik elektroizolacyjny COBA Switch VDE EVS1010 4.5 1000 1000 131,00 Wysyłka do 5 dni
Chodnik elektroizolacyjny COBA Switch VDE EVS10125 4.5 1000 1250 177,00 Wysyłka do 5 dni
Chodnik elektroizolacyjny COBA Switch VDE EVS10100 4.5 1000 10000 1133,00 Wysyłka do 5 dni

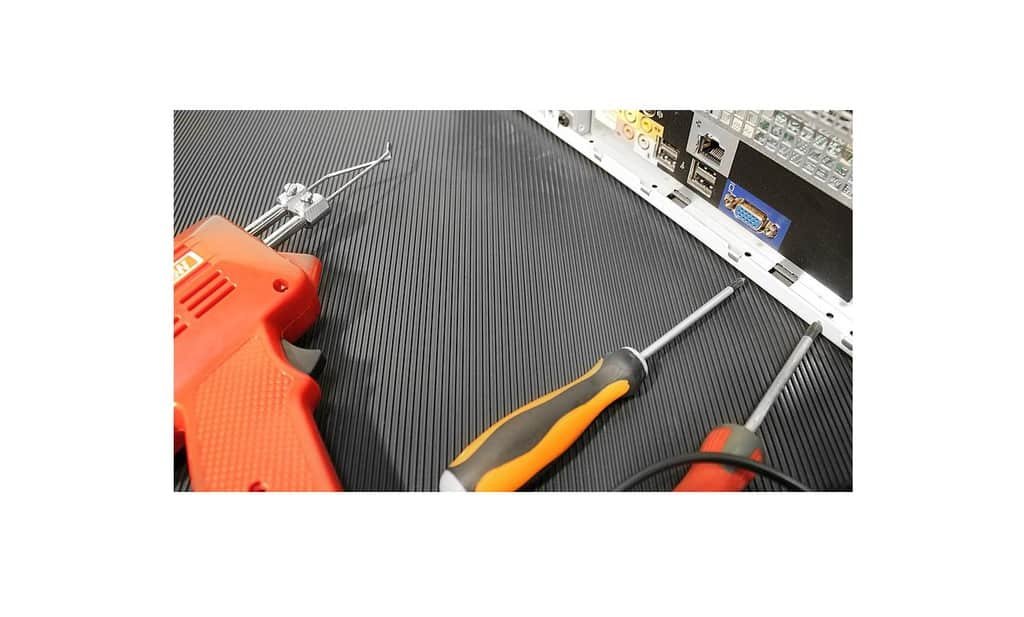

Electrical insulation mat COBA Switch VDE



Electrical insulation mat COBA Switch with a structure of fine grooves. This facilitates the drainage of all kinds of fluids. Designed for use with equipment operating at high voltage and in electrical switchgear. Provides protection against electric shock.

Meets standard BS 921:1976 50,000 V according to DIN EN 60243-1 (VDE 0303 Part 21) IEC 60243-2:1996.



Electrical insulation mat COBA Switch VDE - technical specification



Material: Natural rubber

Construction: Solid

Surface: Grooved

Working environment: Dry, electrical switchgear, near equipment

Installation method: Loose-laid

Operating temperature range: from -10°C to 60°C
Note: We recommend using mats in positive temperatures, as this provides additional benefits - longer lifespan.

Insulation from cold substrate: YES

Anti-slip properties: YES

Cleaning method: Very easy to clean, simple tasks like vacuuming, sweeping are sufficient.

Height: 4.5 mm

Weight: 6.8kg/m2

Available colors: grey
