Parabolic Threaded Vibration Isolator
available 37 variants
Configure the product using the filters to make a purchase.
| Product | Mpn |
Diameter [mm]
|
Height [mm]
|
Thread type
|
Hardness Shore A |
Price gross |
|
|---|---|---|---|---|---|---|---|
| Wibroizolator Paraboliczny PA-E | WPG10x10-45A | 10 | 10 | M5 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg10x10-60A | 10 | 10 | M5 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg20x15-60A | 20 | 15 | M6 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg20x15-45A | 20 | 15 | M6 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg20x24-45A | 20 | 24 | M6 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg20x24-60A | 20 | 24 | M6 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg25x20-45A | 25 | 20 | M6 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg25x20-60A | 25 | 20 | M6 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg30x30-45A | 30 | 30 | M8 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg30x30-60A | 30 | 30 | M8 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg30x36-45A | 30 | 36 | M8 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg30x36-M8-60A | 30 | 36 | M8 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg30x36-M6-50A | 30 | 36 | M6 | 50 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg32x24-45A | 32 | 24 | M8 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg32x24-60A | 32 | 24 | M8 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg35x40-45A | 35 | 40 | M8 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg35x40-60A | 35 | 40 | M8 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg50x50-45A | 50 | 50 | M10 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg50x50-60A | 50 | 50 | M10 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg50x58-45A | 50 | 58 | M10 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg50x58-60A | 50 | 58 | M12 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg50x61-45A | 50 | 61 | M10 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg50x61-60A | 50 | 61 | M10 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg50x68-45A | 50 | 68 | M10 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg50x68-60A | 50 | 68 | M10 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg60x40-45A | 60 | 40 | M10 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg60x40-60A | 60 | 40 | M10 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg70x58-45A | 70 | 58 | M12 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg70x58-60A | 70 | 58 | M12 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg75x89-45A | 75 | 89 | M12 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg75x89-60A | 75 | 89 | M12 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg95x80-45A | 95 | 80 | M16 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg95x80-60A | 95 | 80 | M16 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg115x136-45A | 115 | 136 | M16 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg115x136-60A | 115 | 136 | M16 | 60 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg118x77-45A | 118 | 77 | M16 | 45 |
|
|
| Wibroizolator Paraboliczny PA-E | wpg118x77-60A | 118 | 77 | M16 | 60 |
|
|

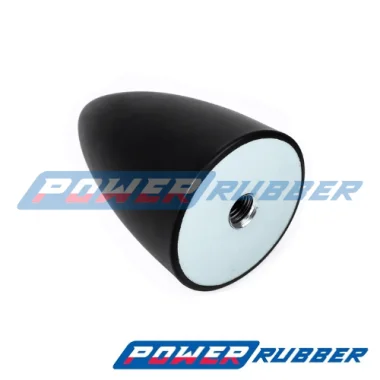

Parabolic Threaded Vibration Isolator
The parabolic threaded vibration isolator (type PA-E) is a specialized damping element used in applications requiring effective vibration and noise reduction. The characteristic parabolic shape of the rubber body ensures uniform distribution of loads and high flexibility in axial and transverse directions. PA-E vibration isolators are equipped with external threads to facilitate installation in hard-to-reach areas. They are used in the machinery industry, HVAC, ventilation systems, compressors, and pumps. Made of durable rubber compounds (usually SBR or NR), they provide resistance to wear, oils, and temperature fluctuations. They are an excellent choice for stabilizing equipment with medium and high-frequency vibrations.
Diameter: from 10 mm to 118 mm
Thread Type:
- M5
- M6
- M8
- M10
- M12
- M16
Hardness:
- 45 ShA
- 50 ShA
- 60 ShA
