Simmering CO/CS

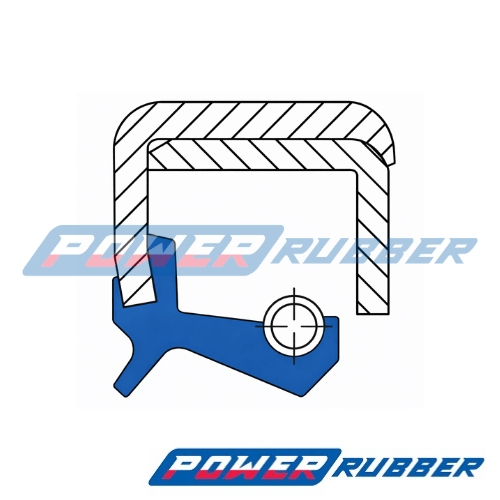

Simmering CO/CS is a high-quality sealing ring designed to work under conditions of increased dust, moisture, and intense mechanical operation. It is equipped with an outer metal band and two elastomeric lips: the main sealing lip supported by a spring, and an additional dust lip designed to protect against external contaminants. This construction provides a double protective barrier for systems operating in challenging industrial environments.

Typically made of NBR rubber (acrylonitrile-butadiene), known for its excellent resistance to mineral oils, greases, fuels, and hydraulic fluids. Special versions are available in FKM (Viton®) for high-temperature resistance and resistance to aggressive media. Simmering CO/CS is used in internal combustion engines, gearboxes, hydraulic pumps, agricultural and construction machinery, and industrial equipment. Its design ensures not only high sealing performance but also prolonged service life of components.

Simmering CS NBR - technical data

Operating temperature range: -40°C to +100°C

Maximum speed: 12 m/s

Pressure: 0.05 MPa

Good resistance to:

• mineral oil-based lubricants
• vegetable and animal oils and fats
• hydraulic oils H, H-L, H-LP
• silicone oils and greases
• aliphatic hydrocarbons
• hydraulic fluids HFA, HFB, HFC
• water (up to +80°C)

Simmering CS FKM - technical data

Operating temperature range: -20°C  to +200°C

Maximum speed: 35 m/s

Pressure: 0.05 MPa

Good resistance to:

• mineral oil-based lubricants
• vegetable and animal oils and fats
• silicone oils and greases
• fuels
• non-polar solvents
• aliphatic, aromatic, and chlorinated hydrocarbons
• hydraulic fluids HFD
• fuels
• ​ozone, atmospheric conditions, aging
