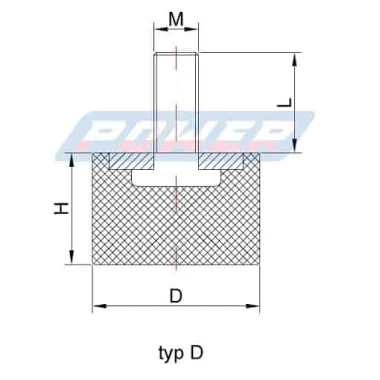

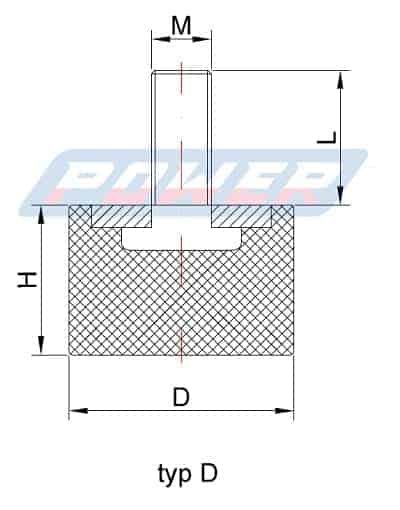

Rubber damper type D
available 129 variants
Configure the product using the filters to make a purchase.
| Product | Mpn |
Internal diameter ID [mm]
|
Height [mm]
|
Type of thread
|
Thread length [mm]
|
Price gross |
|
|---|---|---|---|---|---|---|---|
| Wibroizolator typ D 6x7 M3x6 | WE10x10M195 | 6 | 7 | M3 | 6 |
|
|
| Wibroizolator typ D 8x5 M3x6 | WE10x10M196 | 8 | 5 | M3 | 6 |
|
|
| Wibroizolator typ D 8x6 M3x6 | WE10x10M197 | 8 | 6 | M3 | 6 |
|
|
| Wibroizolator typ D 8x8 M3x6 | WD8x8M3x6 | 8 | 8 | M3 | 6 |
|
|
| Wibroizolator typ D 8x10 M3x6 | WE10x10M198 | 8 | 10 | M3 | 6 |
|
|
| Wibroizolator typ D 8x13 M3x6 | WD8x13M3x6 | 8 | 13 | M3 | 6 |
|
|
| Wibroizolator typ D 8x15 M3x6 | WE10x10M199 | 8 | 15 | M3 | 6 |
|
|
| Wibroizolator typ D 10x5 M4x10 | WE10x10M200 | 10 | 5 | M4 | 10 |
|
|
| Wibroizolator typ D 10x6 M4x10 | WE10x10M201 | 10 | 6 | M4 | 10 |
|
|
| Wibroizolator typ D 10x8 M4x10 | WE10x10M202 | 10 | 8 | M4 | 10 |
|
|
| Wibroizolator typ D 10x10 M4x10 | WD10x10M4x10 | 10 | 10 | M4 | 10 |
|
|
| Wibroizolator typ D 10x15 M4x10 | WD10x15M4x10 | 10 | 15 | M4 | 10 |
|
|
| Wibroizolator typ D 10x18 M5x30 | WE10x10M203 | 10 | 18 | M5 | 30 |
|
|
| Wibroizolator typ D 10x20 M4x10 | WD10x20M4x10 | 10 | 20 | M4 | 10 |
|
|
| Wibroizolator typ D 12x15 M5x10 | WE10x10M204 | 12 | 15 | M5 | 10 |
|
|
| Wibroizolator typ D 15x3,5 M4x10 | WE10x10M205 | 15 | 3.5 | M4 | 10 |
|
|
| Wibroizolator typ D 15x5 M4x10 | WE10x10M206 | 15 | 5 | M4 | 10 |
|
|
| Wibroizolator typ D 15x8 M4x15 | WE10x10M207 | 15 | 8 | M4 | 15 |
|
|
| Wibroizolator typ D 15x10 M4x10 | WD15x10M4x10 | 15 | 10 | M4 | 10 |
|
|
| Wibroizolator typ D 15x12 M4x10 | WE10x10M208 | 15 | 12 | M4 | 10 |
|
|
| Wibroizolator typ D 15x15 M4x10 | WD15x15M4x10 | 15 | 15 | M4 | 10 |
|
|
| Wibroizolator typ D 15x20 M4x10 | WD15x20M4x10 | 15 | 20 | M4 | 10 |
|
|
| Wibroizolator typ D 15x25 M4x10 | WE10x10M209 | 15 | 25 | M4 | 10 |
|
|
| Wibroizolator typ D 15x30 M4x10 | WD15x30M4x10 | 15 | 30 | M4 | 10 |
|
|
| Wibroizolator typ D 19x20 M6x23 | WE10x10M210 | 19 | 20 | M6 | 23 |
|
|
| Wibroizolator typ D 20x15 M6x18 | WD20x15M6x18 | 20 | 15 | M6 | 18 |
|
|
| Wibroizolator typ D 20x10 M6x18 | WD20x10M6x18 | 20 | 10 | M6 | 18 |
|
|
| Wibroizolator typ D 20x20 M6x18 | WD20x20M6x18 | 20 | 20 | M6 | 18 |
|
|
| Wibroizolator typ D 20x30 M6x18 | WD20x30M6x18 | 20 | 30 | M6 | 18 |
|
|
| Wibroizolator typ D 25x8 M6x28 | WE10x10M211 | 25 | 8 | M6 | 28 |
|
|
| Wibroizolator typ D 25x10 M8x23 | WE10x10M212 | 25 | 10 | M8 | 23 |
|
|
| Wibroizolator typ D 25x12 M6x28 | WE10x10M213 | 25 | 12 | M6 | 28 |
|
|
| Wibroizolator typ D 25x15 M6x18 | WD25x15M6x18 | 25 | 15 | M6 | 18 |
|
|
| Wibroizolator typ D 25x17 M6x18 | WD25x17M6x18 | 25 | 17 | M6 | 18 |
|
|
| Wibroizolator typ D 25x20 M6x18 | WD25x20M6x18 | 25 | 20 | M6 | 18 |
|
|
| Wibroizolator typ D 25x22 M6x18 | WE10x10M214 | 25 | 22 | M6 | 18 |
|
|
| Wibroizolator typ D 25x25 M8x38 | WE10x10M215 | 25 | 25 | M8 | 38 |
|
|
| Wibroizolator typ D 25x28 M6x18 | WE10x10M216 | 25 | 28 | M6 | 18 |
|
|
| Wibroizolator typ D 25x30 M6x18 | WD25x30M6x18 | 25 | 30 | M6 | 18 |
|
|
| Wibroizolator typ D 25x30 M6x28 | WE10x10M217 | 25 | 30 | M6 | 28 |
|
|
| Wibroizolator typ D 25x35 M6x18 | WE10x10M218 | 25 | 35 | M6 | 18 |
|
|
| Wibroizolator typ D 25x40 M6x18 | WE10x10M219 | 25 | 40 | M6 | 18 |
|
|
| Wibroizolator typ D 30x6 M8x38 | WE10x10M220 | 30 | 6 | M8 | 38 |
|
|
| Wibroizolator typ D 30x10 M8x28 | WE10x10M221 | 30 | 10 | M8 | 28 |
|
|
| Wibroizolator typ D 30x15 M8x20 | WD30x15M8x20 | 30 | 15 | M8 | 20 |
|
|
| Wibroizolator typ D 30x12 M8x20 | WE10x10M222 | 30 | 12 | M8 | 20 |
|
|
| Wibroizolator typ D 30x17 M8x20 | WD30x17M8x20 | 30 | 17 | M8 | 20 |
|
|
| Wibroizolator typ D 30x20 M8x20 | WD30x20M8x20 | 30 | 20 | M8 | 20 |
|
|
| Wibroizolator typ D 30x22 M8x20 | WE10x10M223 | 30 | 22 | M8 | 20 |
|
|
| Wibroizolator typ D 30x25 M8x20 | WD30x25M8x20 | 30 | 25 | M8 | 20 |
|
|
| Wibroizolator typ D 30x28 M8x20 | WE10x10M224 | 30 | 28 | M8 | 20 |
|
|
| Wibroizolator typ D 30x30 M8x20 | WD30x30M8x20 | 30 | 30 | M8 | 20 |
|
|
| Wibroizolator typ D 30x35 M8x20 | WE10x10M225 | 30 | 35 | M8 | 20 |
|
|
| Wibroizolator typ D 30x36 M6x20 | WE10x10M226 | 30 | 36 | M6 | 20 |
|
|
| Wibroizolator typ D 30x36 M8x23 | WE10x10M227 | 30 | 36 | M8 | 23 |
|
|
| Wibroizolator typ D 30x45 M8x20 | WE10x10M228 | 30 | 45 | M8 | 20 |
|
|
| Wibroizolator typ D 40x6 M8x38 | WE10x10M229 | 40 | 6 | M8 | 38 |
|
|
| Wibroizolator typ D 40x10 M6x25 | WE10x10M230 | 40 | 10 | M6 | 25 |
|
|
| Wibroizolator typ D 40x15 M6x25 | WE10x10M231 | 40 | 15 | M6 | 25 |
|
|
| Wibroizolator typ D 40x20 M8x23 | WD40x20M8x23 | 40 | 20 | M8 | 23 |
|
|
| Wibroizolator typ D 40x25 M8x23 | WD40x25M8x23 | 40 | 25 | M8 | 23 |
|
|
| Wibroizolator typ D 40x30 M8x23 | WD40x30M8x23 | 40 | 30 | M8 | 23 |
|
|
| Wibroizolator typ D 40x35 M8x23 | WE10x10M232 | 40 | 35 | M8 | 23 |
|
|
| Wibroizolator typ D 40x40 M8x23 | WD40x40M8x23 | 40 | 40 | M8 | 23 |
|
|
| Wibroizolator typ D 50x10 M10x28 | WE10x10M233 | 50 | 10 | M10 | 28 |
|
|
| Wibroizolator typ D 50x15 M10x28 | WE10x10M234 | 50 | 15 | M10 | 28 |
|
|
| Wibroizolator typ D 50x20 M10x28 | WD50x20M10x28 | 50 | 20 | M10 | 28 |
|
|
| Wibroizolator typ D 50x25 M10x48 | WE10x10M235 | 50 | 25 | M10 | 48 |
|
|
| Wibroizolator typ D 50x30 M10x28 | WD50x30M10x28 | 50 | 30 | M10 | 28 |
|
|
| Wibroizolator typ D 50x35 M12x37 | WE10x10M236 | 50 | 35 | M12 | 37 |
|
|
| Wibroizolator typ D 50x40 M10x28 | WD50x40M10x28 | 50 | 40 | M10 | 28 |
|
|
| Wibroizolator typ D 50x45 M10x28 | WE10x10M237 | 50 | 45 | M10 | 28 |
|
|
| Wibroizolator typ D 50x50 M10x28 | WD50x50M10x28 | 50 | 50 | M10 | 28 |
|
|
| Wibroizolator typ D 60x15 M10x28 | WE10x10M238 | 60 | 15 | M10 | 28 |
|
|
| Wibroizolator typ D 60x20 M10x28 | WD60x20M10x28 | 60 | 20 | M10 | 28 |
|
|
| Wibroizolator typ D 60x25 M12x37 | WE10x10M239 | 60 | 25 | M12 | 37 |
|
|
| Wibroizolator typ D 60x30 M10x28 | WE10x10M240 | 60 | 30 | M10 | 28 |
|
|
| Wibroizolator typ D 60x40 M10x28 | WD60x40M10x28 | 60 | 40 | M10 | 28 |
|
|
| Wibroizolator typ D 60x45 M12x37 | WE10x10M241 | 60 | 45 | M12 | 37 |
|
|
| Wibroizolator typ D 60x60 M10x28 | WD60x60M10x28 | 60 | 60 | M10 | 28 |
|
|
| Wibroizolator typ D 60x50 M10x28 | WE10x10M242 | 60 | 50 | M10 | 28 |
|
|
| Wibroizolator typ D 70x60 M12x37 | WE10x10M243 | 70 | 60 | M12 | 37 |
|
|
| Wibroizolator typ D 70x25 M10x28 | WE10x10M244 | 70 | 25 | M10 | 28 |
|
|
| Wibroizolator typ D 70x20 M12x37 | WE10x10M245 | 70 | 20 | M12 | 37 |
|
|
| Wibroizolator typ D 70x30 M10x28 | WE10x10M246 | 70 | 30 | M10 | 28 |
|
|
| Wibroizolator typ D 70x35 M10x28 | WE10x10M247 | 70 | 35 | M10 | 28 |
|
|
| Wibroizolator typ D 70x40 M10x28 | WE10x10M248 | 70 | 40 | M10 | 28 |
|
|
| Wibroizolator typ D 70x45 M10x28 | WE10x10M249 | 70 | 45 | M10 | 28 |
|
|
| Wibroizolator typ D 70x50 M10x28 | WE10x10M250 | 70 | 50 | M10 | 28 |
|
|
| Wibroizolator typ D 70x55 M10x28 | WE10x10M251 | 70 | 55 | M10 | 28 |
|
|
| Wibroizolator typ D 70x70 M10x28 | WE10x10M252 | 70 | 70 | M10 | 28 |
|
|
| Wibroizolator typ D 80x30 M12x37 | WE10x10M253 | 80 | 30 | M12 | 37 |
|
|
| Wibroizolator typ D 80x65 M12x37 | WE10x10M254 | 80 | 65 | M12 | 37 |
|
|
| Wibroizolator typ D 100x25 M16x41 | WE10x10M255 | 100 | 25 | M16 | 41 |
|
|
| Wibroizolator typ D 100x30 M16x41 | WE10x10M256 | 100 | 30 | M16 | 41 |
|
|
| Wibroizolator typ D 100x35 M16x41 | WE10x10M257 | 100 | 35 | M16 | 41 |
|
|
| Wibroizolator typ D 100x40 M16x41 | WE10x10M258 | 100 | 40 | M16 | 41 |
|
|
| Wibroizolator typ D 100x45 M16x41 | WE10x10M259 | 100 | 45 | M16 | 41 |
|
|
| Wibroizolator typ D 100x50 M16x41 | WE10x10M260 | 100 | 50 | M16 | 41 |
|
|
| Wibroizolator typ D 100x55 M16x41 | WE10x10M261 | 100 | 55 | M16 | 41 |
|
|
| Wibroizolator typ D 100x60 M16x41 | WE10x10M262 | 100 | 60 | M16 | 41 |
|
|
| Wibroizolator typ D 100x65 M16x41 | WE10x10M263 | 100 | 65 | M16 | 41 |
|
|
| Wibroizolator typ D 100x70 M16x41 | WE10x10M264 | 100 | 70 | M16 | 41 |
|
|
| Wibroizolator typ D 100x75 M12x42 | WE10x10M265 | 100 | 75 | M12 | 42 |
|
|
| Wibroizolator typ D 9x7 M4x10 | WE10x10M266 | 9 | 7 | M4 | 10 |
|
|
| Wibroizolator typ D 13x10 M4x10 | WE10x10M267 | 13 | 10 | M4 | 10 |
|
|
| Wibroizolator typ D 16x7 M5x10 | WE10x10M268 | 16 | 7 | M5 | 10 |
|
|
| Wibroizolator typ D 18x7,5 M6x18 | WE10x10M269 | 18 | 7.5 | M6 | 18 |
|
|
| Wibroizolator typ D 20x5 M6x18 | WE10x10M270 | 20 | 5 | M6 | 18 |
|
|
| Wibroizolator typ D 20x8 M6x18 | WE10x10M271 | 20 | 8 | M6 | 18 |
|
|
| Wibroizolator typ D 20x12 M6x18 | WE10x10M272 | 20 | 12 | M6 | 18 |
|
|
| Wibroizolator typ D 20x17 M6x18 | WE10x10M273 | 20 | 17 | M6 | 18 |
|
|
| Wibroizolator typ D 20x22 M6x18 | WE10x10M274 | 20 | 22 | M6 | 18 |
|
|
| Wibroizolator typ D 20x25 M6x33 | WE10x10M275 | 20 | 25 | M6 | 33 |
|
|
| Wibroizolator typ D 35x20 M8x20 | WE10x10M276 | 35 | 20 | M8 | 20 |
|
|
| Wibroizolator typ D 35x30 M8x20 | WE10x10M277 | 35 | 30 | M8 | 20 |
|
|
| Wibroizolator typ D 45x50 M8x23 | WE10x10M278 | 45 | 50 | M8 | 23 |
|
|
| Wibroizolator typ D 55x40 M10x28 | WE10x10M279 | 55 | 40 | M10 | 28 |
|
|
| Wibroizolator typ D 75x15 M12x37 | WE10x10M280 | 75 | 15 | M12 | 37 |
|
|
| Wibroizolator typ D 75x20 M12x37 | WE10x10M281 | 75 | 20 | M12 | 37 |
|
|
| Wibroizolator typ D 75x25 M12x37 | WE10x10M282 | 75 | 25 | M12 | 37 |
|
|
| Wibroizolator typ D 75x30 M12x37 | WE10x10M283 | 75 | 30 | M12 | 37 |
|
|
| Wibroizolator typ D 75x35 M12x37 | WE10x10M284 | 75 | 35 | M12 | 37 |
|
|
| Wibroizolator typ D 75x40 M12x37 | WE10x10M285 | 75 | 40 | M12 | 37 |
|
|
| Wibroizolator typ D 75x45 M12x37 | WE10x10M286 | 75 | 45 | M12 | 37 |
|
|
| Wibroizolator typ D 75x50 M12x37 | WE10x10M287 | 75 | 50 | M12 | 37 |
|
|
| Wibroizolator typ D 75x55 M12x42 | WE10x10M288 | 75 | 55 | M12 | 42 |
|
|
| Wibroizolator typ D 75x65 M12x37 | WE10x10M289 | 75 | 65 | M12 | 37 |
|
|
| Wibroizolator typ D 90x60 M12x37 | WE10x10M290 | 90 | 60 | M12 | 37 |
|
|
Rubber shock absorber type D
Rubber shock absorber type D is a vibration-damping element designed for use in systems requiring point mounting and flexible decoupling of structural elements. Equipped with a single threaded pin and a flat surface, it allows for quick installation to a plate or frame. Made of high-quality rubber compound with hardness optimally selected for industrial applications, it effectively reduces vibration and noise transmission. Used in applications such as fans, pumps, control cabinets, and air conditioning units. Type D shock absorber increases machine work comfort, protects installation components, and extends the lifespan of components.
