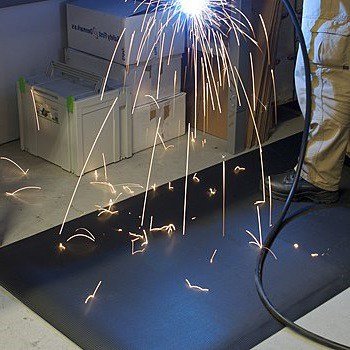

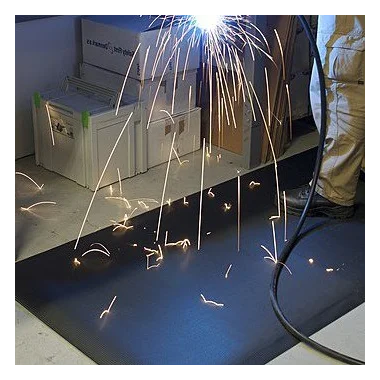

Diamond Tread Welding Mat

Diamond Tread Welding Mat is a dual-layered mat with anti-fatigue properties designed for welders. It is intended for dry environments and welding work. The bottom layer is made of foamed PVC. The top layer is a diamond-patterned laminate, resistant to hot fluxes, shavings, and sparks. It complies with the standard: BS EN ISO 13501-1:2002 - class Cfl-s1

Designed for dry environments and welding work. The bottom layer is made of foamed PVC. The top layer is a diamond-patterned laminate, resistant to hot fluxes, shavings, and sparks.

Welding mats are usually made of silicone, fire-resistant glass, Kevlar, or other flame-resistant materials that can withstand high temperatures and welding flame exposure.

Welding mats are widely used in the metal industry, workshops, shipyards, industrial plants, as well as in amateur welding.

They can be used as floor coverings, workshop benchtops, welding tables, or as protective shields on adjoining surfaces.

Diamond Tread Welding Mat - Technical Specification

Material: PVC foam + PVC laminate

Construction: two-layered: upper PVC laminate heat-fused - hot-glued to the PVC foam base

Surface: pyramids

Finish: mats are finished with a beveled edge on 4 sides - reduced risk of tripping

Working Environment: welding areas, dry environment, heavy-duty usage

Installation Method: loose lay (special tape can be used on slippery floors)

Insulation from cold subfloor: YES

Non-slip properties: YES

Fire Resistance: BS EN ISO 13501-1:2002 - class Cfl-s1

Cleaning Method: Very easy maintenance requiring simple tasks such as vacuuming, sweeping, or mopping with a damp mop.

Height: 12.5 mm

Weight: 5.3 kg/m2

Available Colors: black

Diamond Tread Welding Mat - Available Sizes

• 600 x 900 mm
• 900 x 1000 mm
• 900 x 1500 mm
• 900 x 18300 mm
