Anti-static mat HR Matting

Anti-static mat HR Matting

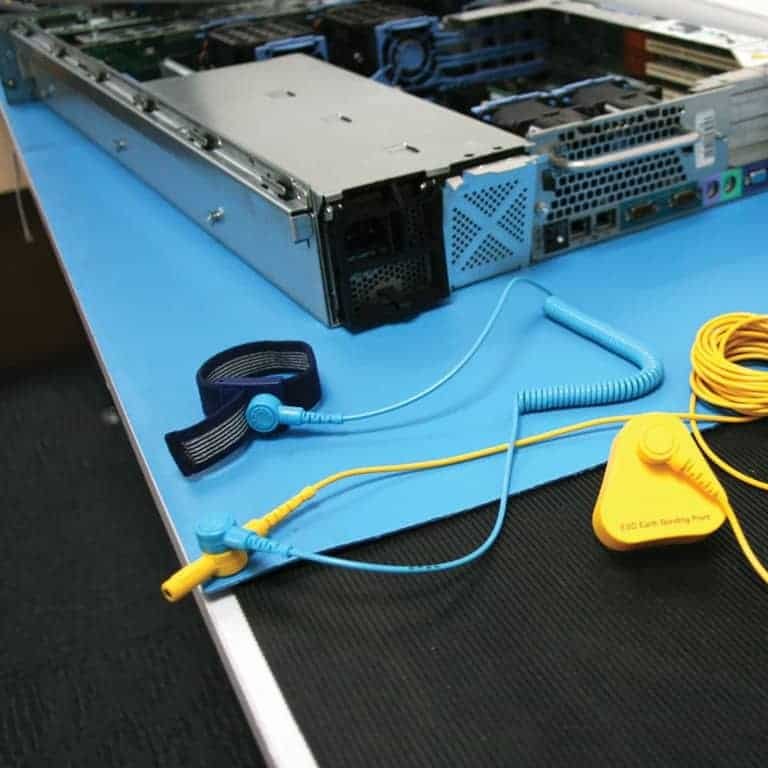

Anti-static mat HR Matting for workbenches with a thickness of 2.4mm. High quality, made of PVC, designed to protect workers and components from dangerous electrostatic discharges. For a dry environment.

Meets or exceeds the requirements of standard IEC 61340-5-1 in terms of resistance - actual resistance: 1 x 10⁷Ω - 1 x 10⁹Ω .

Each mat is equipped with a 10mm male snap fastener. Mats are available as ready-made mats, in running meters, and full rolls.

Available colors: blue and gray.

Anti-static mat HR Matting - technical specification

Material: PVC

Construction: Single-layer

Surface: smooth with pattern

Finish: 10mm snap fastener - male / other ESD accessories

Work environment: dry, moderately and heavily intensive use

Installation method: Loose laid or bonded with double-sided tape

Operating temperature range: from -28°C to 70°C

Note: We recommend using mats in positive temperatures for longer lifespan.

Non-slip properties: YES

Resistance: 1 x 10⁷Ω - 1 x 10⁹Ω according to standard IEC 61340-5-1

Cleaning method: Very easy maintenance, simple tasks like vacuuming, sweeping are sufficient

Height: 2.4 mm

Weight: 3.7 kg/m2

Available colors:

• gray
• blue

Anti-static mat HR Matting - available dimensions

• 600 mm x 1000 mm
• 1200 mm x 1000 mm
• 600 mm x 15300 mm
• 1200 mm x 15300 mm
