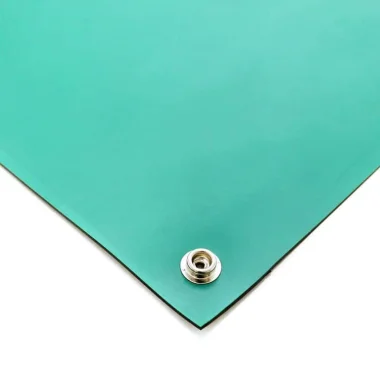

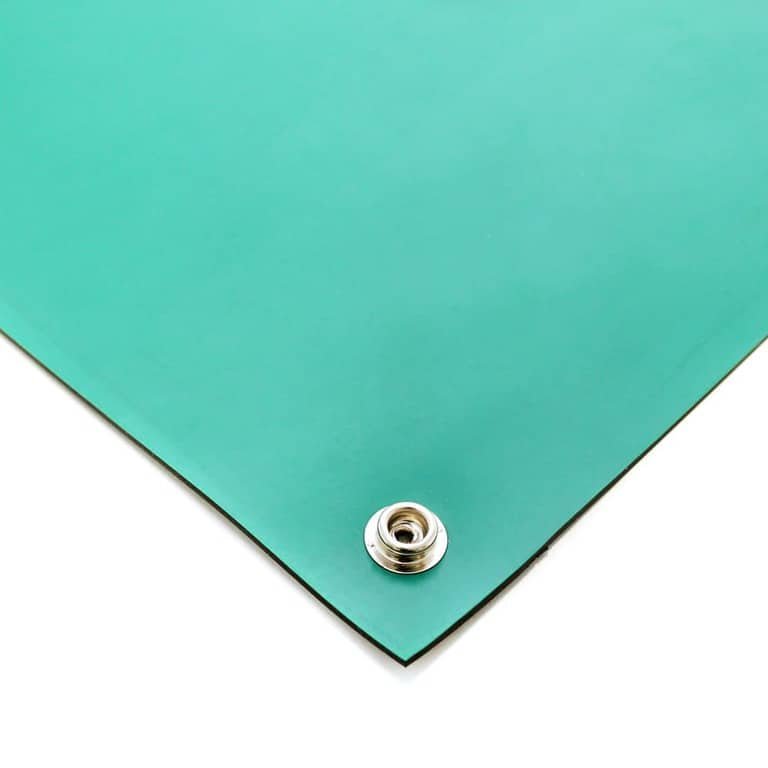

ESD Table Conductive Mat

Conductive ESD Table Mat

Conductive ESD Table Mat  2mm in gray or green color designed for workbenches to protect employees and components from electrostatic discharges. For dry environments - resistant to hot fluxes, solder, etc. Light-diffusing surface.

Surface Resistance: 1 x 10⁷Ω - 1 x 10⁹Ω .

Each mat is equipped with a 10mm snap fastener. Available as finished mats.

Available colors: gray and green.


Conductive ESD Table Mat - Technical Specification

Material: Rubber

Construction: Two-layer

Surface: smooth

Finish: 10mm snap fastener - male / other ESD accessories

Working Environment: dry, medium to heavy-duty use, soldering

Installation Method: Loose lay or adhesive-backed tape

Non-Slip Properties: YES

Resistance: Surface Resistance: 1 x 10⁷Ω - 1 x 10⁹Ω Upper light-diffusing surface 0.5mm (gray, green) and lower surface (black) 1.5mm conductive

Cleaning Method: Very easy to maintain cleanliness, simple tasks like vacuuming, sweeping are sufficient

Height: 2 mm

Weight: 3.27kg/m2

Available colors:

• gray
• green

Conductive ESD Table Mat - Available Dimensions

• 600 x 1200 mm
